What greater pain than not being able to find your car? Even worse if it seems to have been stolen. Fortunately, there is a solution: the Mini Magnetic GPS Tracker! Thanks to its small size, you can discreetly protect your car against theft or loss. Knowing that 1.5 million vehicles are stolen every year, this is great news! You will always know where your car is. Avoid stress and frustration!

The GPS tracker works worldwide! No subscription required!

Usage mode:

• Preparation: Insert a SIM card and a mini memory card (TF).

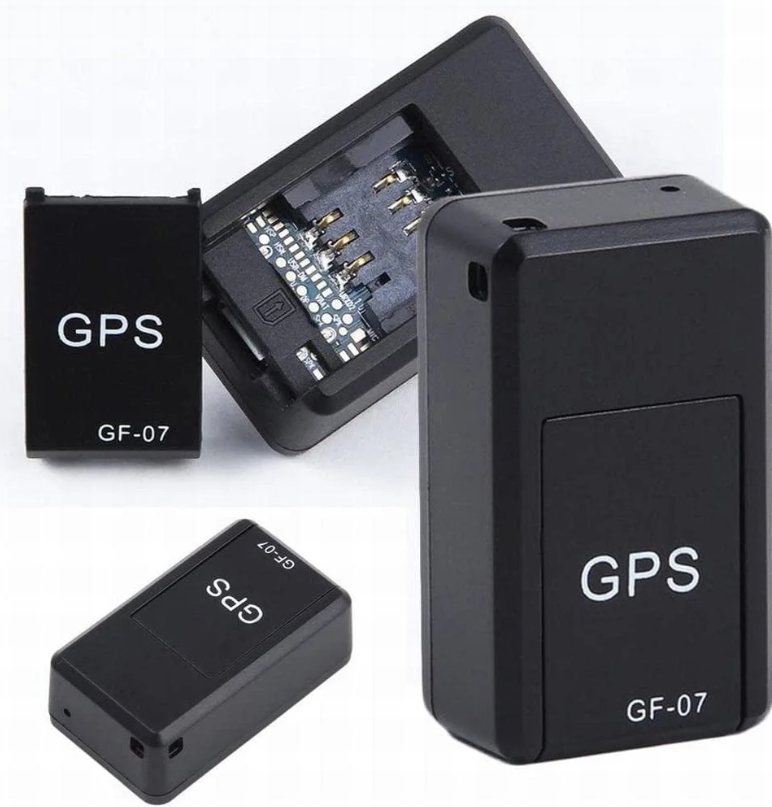

• Power on: Open the cover as indicated, insert the SIM card and the memory card. The device powers on automatically. The red light blinks 4 times, then after 30 seconds it switches to standby mode.

• Indicator light: Steady on at startup, blinking when the battery is low.

• Main number connection: Send an SMS with “000” from your phone to the tracker’s number. The device will respond. Then set up: Connection + main number.

• Separate recordings: Send “555” via SMS to the tracker number. The device responds: [Snd; recording started].

• Voice call-back: Send “666” to the tracker number. The device responds: [DT; sound monitoring activated, alarm call-back activated]. When noise exceeds 40 dB, the tracker automatically calls the preset number.

• GPRS location request: Send “777” to the tracker number. The device responds with an address in China + a Google Maps link for precise location.

• Product voice request: Call the SIM number inside the tracker directly. You will discreetly hear surrounding sounds (the device emits no sounds or lights).

• Location path request: Send “102” to the tracker number. The device responds with account, password, and tracking website.

• TF card content deletion: Send “445” to the tracker number. The device responds: TF successfully deleted.

• Device status: Send “888” to the tracker number. The device responds with: function status, battery capacity, connected number, signal strength, frequency, GPRS, TF card capacity, etc.

• Device reboot: Send “999” to the tracker number. The device will reboot properly in less than a minute.

• Shutdown: Send “444” to the tracker number. The device responds: Reset; all activities canceled.

• Battery request: Every reply automatically includes the battery status.

Note: This product can also be connected to fire alarms, magnetic door sensors, shoe bags, waterproofing, or custom functions. Contact the dealer for more details.

Technical specifications:

• Device dimensions: 3.5 × 2.0 × 1.4 cm (L × W × H)

• Charging input: AC 110–220V, 50/60 Hz

• Charging output: DC 5.0V, 300–500 mA

• Battery: Li-ion 3.7V 400mAh

• Standby time: ~12 days ; Usage time: 4–6 days

• Expansion card: Mini TF card

• Video resolution: 320 × 240

• Photo resolution: 640 × 480

• Talk time: 150–180 minutes

• Format: GSM / GPRS

• Storage temperature: -40°C to +85°C

• Operating temperature: -20°C to +55°C

• Humidity: 5% – 95% non-condensing

• GPRS: Upload 60, TCP/IP

• Operating voltage: 3.4–4.2V DC

• Standby current: ~2.5 mA

• Acoustic current (open): ~30 mA

• Calling current: ~150 mA

• GSM positioning time: ~25 seconds

• Basic parameters: GSM850/900/1800/1900 MHz (quad-band)

• Supported countries: China, United Kingdom, France, Germany, Netherlands, Italy, Spain, Brazil, Portugal, Denmark, Russia, Poland, Turkey, Hungary, Thailand, Indonesia, Malaysia, Vietnam, Myanmar, Pakistan, Iraq, Saudi Arabia, Greece, Kazakhstan, Mongolia, United Arab Emirates (Dubai), etc.

Common issues:

• Device unreachable: Check that the SIM card is inserted and that the device has been restarted. If there is no signal, verify network coverage.

• TF card not storing? Reformat the TF card and try again.

• Unable to charge? Check the GSM SIM card and the charging connection.

• What is the main control phone? It is the primary number used to monitor and control the alarm system.

Special warning:
When the battery drops below 5%, recharge immediately. If the device remains discharged for too long, a deep discharge may occur that permanently damages the battery. For long-term storage, charge the battery to 60–80%, disconnect the power, and recharge every 3 months to maintain performance.
